7S-24S LFP\NMC\LTO|Na-ion 300A BMS for Golf Cart &Energy Storage &3-Wheeled Vehicle &Motorcyle & Parking Air Conditioner

  • ES-Series Unique industrial Patent design;all-copper substrate high-current PCB material systems
  • Compact and Smart BMS comprehensive upgrade suitable for Truck Starting and Forklift
  • String: 7S – 24S Voltage: 24V – 72V for LFP\NMC\LTO|Na-ion

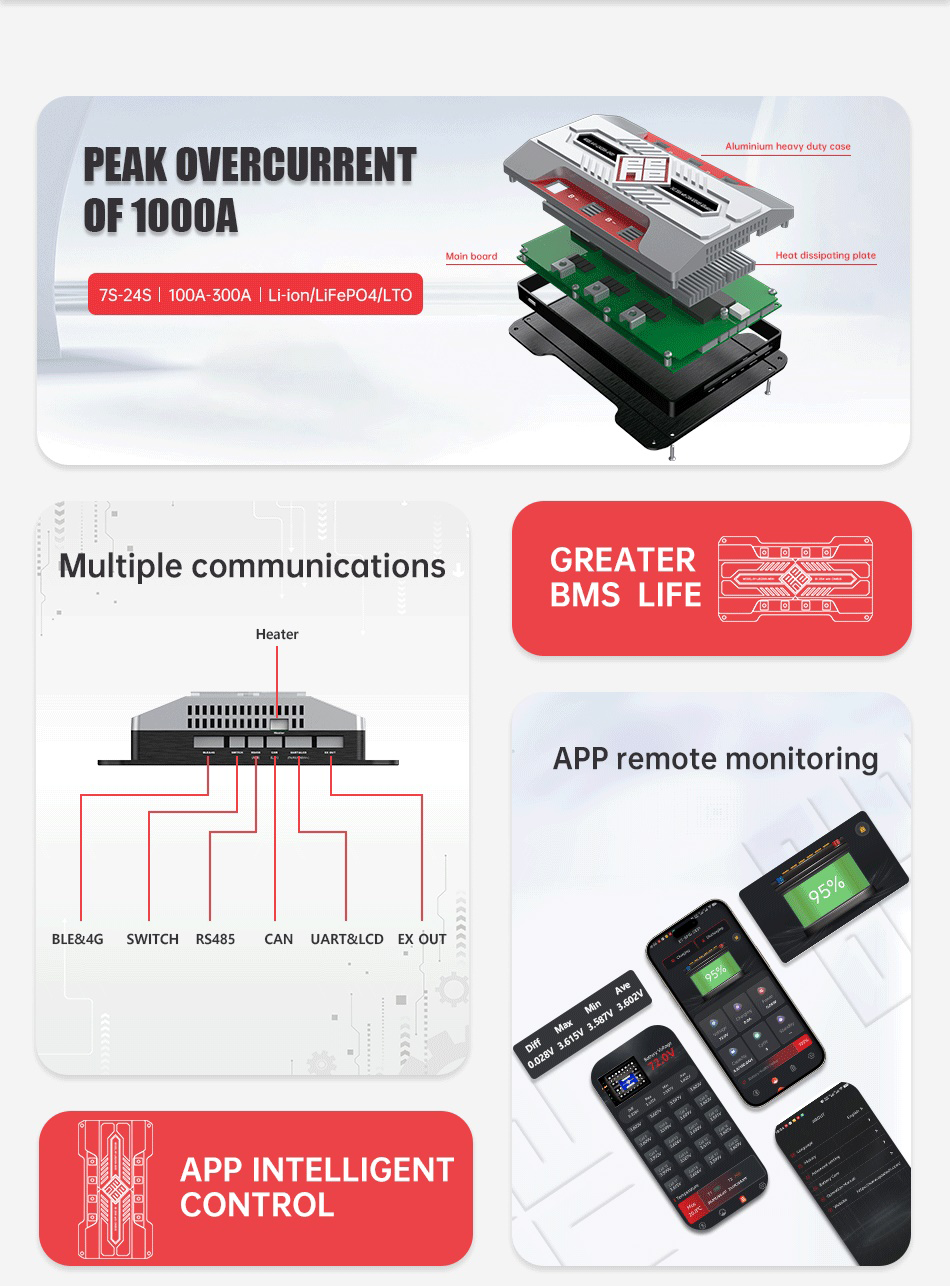

  • Non relay design for support maximum continuous current of up to 300A; Peak current to 1000A
  • Optional 4G, WiFi, Bluetooth and other wireless modules are available.
  • Support CAN,RS485, dual UART communication interfaces)
  • Self-developed Bluetooth APP, PC software
  • Support the heating of the battery at low temperature
  • Overall aluminum alloy heat sink design to reduce the temperature rise of the protection board
  • ES-Series Unique industrial Patent design;all-copper substrate high-current PCB material systems
  • Compact and Smart BMS comprehensive upgrade suitable for Truck Starting and Forklift
  • String: 7S – 24S Voltage: 24V – 72V for LFP\NMC\LTO|Na-ion
  • Non relay design for support maximum continuous current of up to 300A; Peak current to 1000A
  • Optional 4G, WiFi, Bluetooth and other wireless modules are available.
  • Support CAN,RS485, dual UART communication interfaces)
  • Self-developed Bluetooth APP, PC software
  • Support the heating of the battery at low temperature
  • Overall aluminum alloy heat sink design to reduce the temperature rise of the protection board
Inquire Online Download
Parameter information Product Detail
LFLI
Model NumberAY-L24S300A-ES001 (7S-24S)
Communication InterfaceRS485/CAN/UART
Charging voltageDC：22.4V~76.8V
CC/CV（3.2V/Cell)
7s~24s 		DC：29.4V~84V
CC/CV（4.2V/Cell)
7s~20s
Maximal continuous charging current300A
Maximal continuous discharging current300A
Current consume in normal operation ≤15mA
Current consume in sleep operation≤150uA
Balance voltage for single cell3.5±0.05V4.0±0.05V
Over charge detection voltage3.65±0.05V4.25±0.05V
Charge Over current detection current320±3A
Discharge Over current detection current 1600±3A
Discharge Over current detection current 2800±3A
Short ProtectionYES
SOC5%~8%
Technical Specification

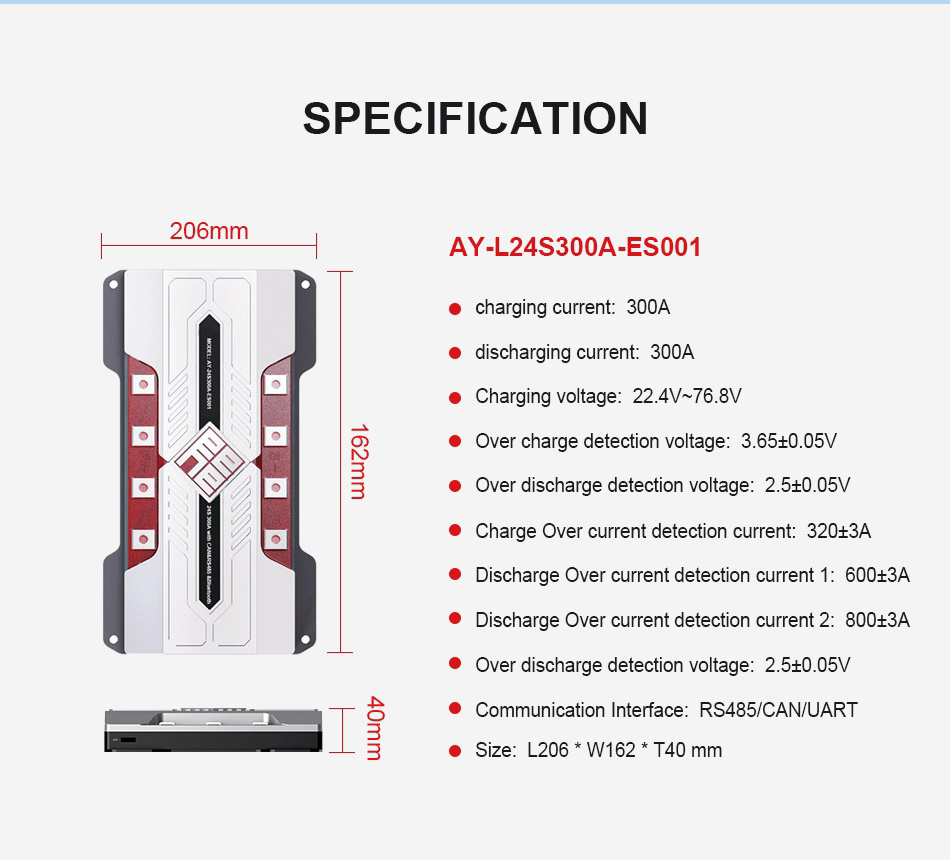

SizeL206 * W162 * T40 mm
NTC10K
Temperature switch/ ℃(the batteries temperature)
Weak current switchYES
Active balance/
Heater YES
Braking ResistorsYES
Other Parameter
Low temperature protection when charge0℃
Release temperature( low temperature protection)5℃
Over temperature protection when charge60℃
Release temperature( over temperature protection)55℃
Low temperature protection when discharge15℃
Release temperature( low temperature protection)10℃
Over temperature protection when discharge65℃
Release temperature( over temperature protection)55℃
Operating Temperature Range40~+85℃
Storage Temperature Range40~+125℃
Temperature Parameter
LCD display screen/
LED light board/
Bluetooth modeYES
4GYES
GPSYES
Optional Configuration
LFLI
Model NumberAY-L24S300A-ES001 (7S-24S)
Communication InterfaceRS485/CAN/UART
Charging voltageDC：22.4V~76.8V
CC/CV（3.2V/Cell)
7s~24s 		DC：29.4V~84V
CC/CV（4.2V/Cell)
7s~20s
Maximal continuous charging current300A
Maximal continuous discharging current300A
Current consume in normal operation ≤15mA
Current consume in sleep operation≤150uA
Balance voltage for single cell3.5±0.05V4.0±0.05V
Over charge detection voltage3.65±0.05V4.25±0.05V
Charge Over current detection current320±3A
Discharge Over current detection current 1600±3A
Discharge Over current detection current 2800±3A
Short ProtectionYES
SOC5%~8%
Technical Specification
SizeL206 * W162 * T40 mm
NTC10K
Temperature switch/ ℃(the batteries temperature)
Weak current switchYES
Active balance/
Heater YES
Braking ResistorsYES
Other Parameter
Low temperature protection when charge0℃
Release temperature( low temperature protection)5℃
Over temperature protection when charge60℃
Release temperature( over temperature protection)55℃
Low temperature protection when discharge15℃
Release temperature( low temperature protection)10℃
Over temperature protection when discharge65℃
Release temperature( over temperature protection)55℃
Operating Temperature Range40~+85℃
Storage Temperature Range40~+125℃
Temperature Parameter
LCD display screen/
LED light board/
Bluetooth modeYES
4GYES
GPSYES
Optional Configuration
